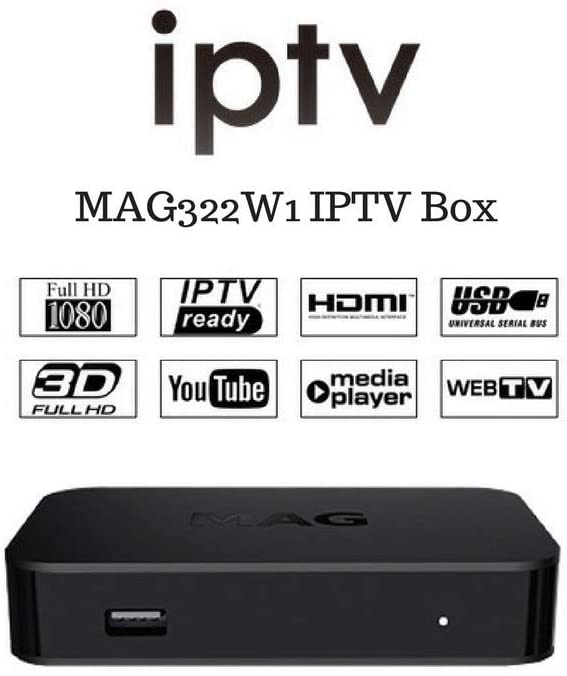

New 2018 Genuine Infomir MAG322W1 HEVC H.265 IPTV Set Top Box Latest Model Built in 150m wifi HDMI

0 Customer Review

Categories: IPTV Set Top box,Mag Box

$139.00

~~139.00~~

Availability:

In Stock

MAG322w1 is a powerful set-top box containing a high-performance processor on the BCM75839 chipset, and 512MB RAM. It’s the optimal solution for the quick launch of your IPTV/OTT project.

The set-top box is designed to fulfill current market needs. Your customers can enjoy the highest video and sound quality with HDMI 1.4b and S/PDIF outputs. HEVC support will dramatically reduce your network load.

MAG254 and MAG322 are fully compatible with the MAG JS API
BCM75839, Linux 3.3, OpenGL ES 2.0, HEVC, 2×2 USB 2.0

New 2018 Genuine Infomir MAG322W1 HEVC H.265 IPTV Set Top Box Latest Model Built in 150m wifi HDMI Information

Features:

Dimensions

Width/depth/height, (mm)	132x87x26
Weight, g	144

Hardware

Chipset	BCM75839
Processor	MIPS 4KE Dual Core CPU 750Mhz
Performance	2000 DMIPS
RAM	512 MB
Flash memory	512 Mb

Software

Operating system	Linux 3.3
	Built-in Media Portal with WebKit-based IPTV-functionality, HTTP 1.1, HTML 4.01 XHTML 1.0/1.1; DOM 1, 2, 3, CSS 1, 2, 3; XML 1.0, XSLT 1.0, XPath 1.0 ; SOAP 1.1; JavaScript ECMA-262, revision 5; Media JavaScript API; C layer SDK
Middleware supported	Ministra multiscreen TV platform

Interfaces

Audio output S/PDIF, HDMI 1.4-output, Composite + stereo A/V output, Ethernet 100 Mb/s, USB 2.0х2

Sources of media content

PC and NAS in a local network, Stream media protocols (RTSP, RTP, UDP, IGMP, HTTP), USB-devices

Audio & Video

Audio сodecs	MPEG-1 layer I/II/III, WMA, AAC-LC, HE-AAC v1, HE-AAC v2, Dolby Digital (optional)
Audio formats	MP3, MPA, M4A, WMA, Ogg, WAV
Video modes	1080i, 1080p, 720p, 576p, PAL, NTSC
Video сodecs	MPEG-1/2, MPEG-4, H.264/AVC HP@L4.2, WMV9, H.265/HEVC Main and Main10 profile up to 1080p at 60 fps, XviD, 3D video support
Video containers	MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT, WMV
Image formats	JPEG, PNG, BMP, GIF, RAW
Subtitles	DVB, PGS, SRT, ASS, SUB
Playlist formats	M3U

Standard set

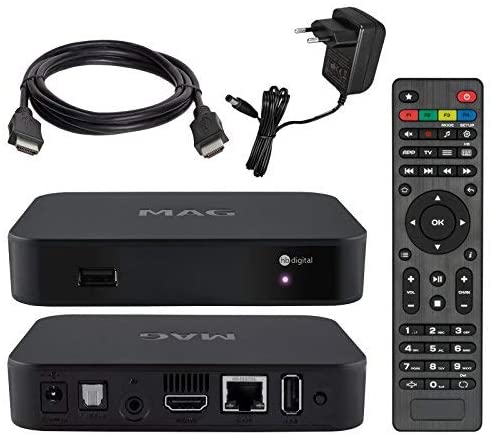

MAG322 Set-Top Box, User Manual, HDMI cable, Power adapter 12V 1A, Remote control, 2 AAA batteries, Packaging

For User Manual click on the following link:

https://drive.google.com/open?id=1nLuGxSI_–XCztkYZnR7CuxDPaghS83E

SKU: MAG322W13657 Category: Mag Box Tag: Infomir MAG322W1

MAG322w1 is a powerful set-top box containing a high-performance processor on the BCM75839 chipset, and 512MB RAM. It’s the optimal solution for the quick launch of your IPTV/OTT project.

The set-top box is designed to fulfill current market needs. Your customers can enjoy the highest video and sound quality with HDMI 1.4b and S/PDIF outputs. HEVC support will dramatically reduce your network load.

MAG254 and MAG322 are fully compatible with the MAG JS API
BCM75839, Linux 3.3, OpenGL ES 2.0, HEVC, 2×2 USB 2.0
