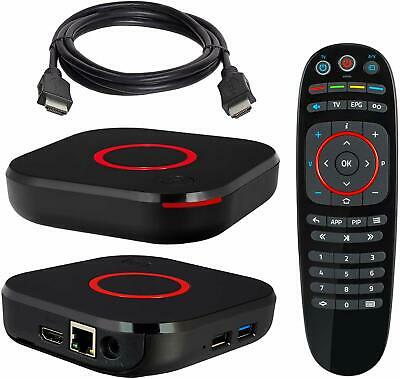

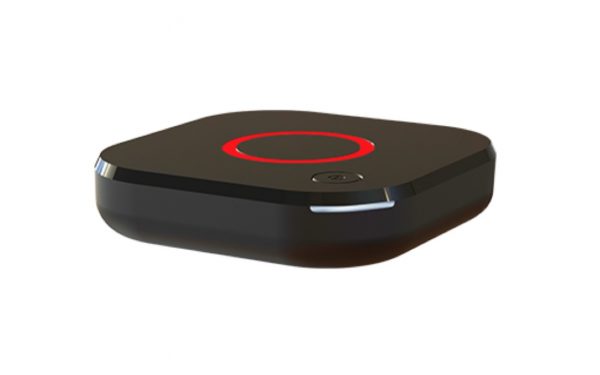

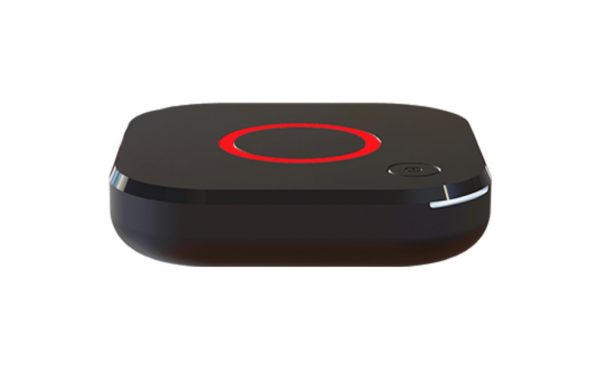

IPTV SET-TOP BOX MAG424w3 LINUX

0 Customer Review

Categories: IPTV Set Top box,Mag Box

$174.00

~~174.00~~

Availability:

In Stock

MAG424w3 UHD set-top box with 4K support MAG424w3 comes on 2 versions, MAG424w3 which is Linux OS and MAG424Aw3. The A stands for Android Operative System. You can choose the version you like for the options above. MAG424/424w3 is a cost-effective UHD IPTV/OTT solution intended for medium to large-sized operators and telecommunication service providers. The set-top box performed in small form-factor. It has 1 GB operative and 8 GB flash memory, which is good enough to playback and stores the high-quality video. MAG424/424w3 plays the HEVC-compressed files. It means the network load will be lower, even when delivering 4K content. The device equipped with 2 USB inputs, Bluetooth 4.1 and a built-in Wi-Fi adapter (for MAG424w3).

IPTV SET-TOP BOX MAG424w3 LINUX Information

MAG424w3 is an improved version of the base model MAG424 with a built-in Wi-Fi module of 802.11a/b/g/n/ac standard. Wi-Fi works feature is dual-band so that supports both 2.4 GHz and 5 GHz channels. Easy to connect A built-in Wi-Fi module (for MAG424w3), USB 3.0 and Bluetooth 4.1 support allow connecting any external drive for extra storage space or a keyboard and mouse for comfortably using the set-top box. High-performance Modern high-performance processor on the HiSilicon chipset Hi3798MV200 and 1 GB RAM is good enough to playback 4K video. Intuitive interface The interface strictly observes Google’s UI design guidelines, so it looks familiar to both the operator and the viewer. Ergonomic design The set-top box and remote control are presented in the new Micro Fusion design. They will look good in any interior. 4K and HEVC support With HEVC, 4K video can be efficiently transmitted throw modern fiber-optics networks. MAG424 is a great example of high-quality HEVC support by both the hardware and software of the device.

Dimensions
Width/depth/height, (mm)	115x115x28
Weight, g	180
Hardware
Chipset	Hi3798MV200
Processor	ARM Cortex-A53 Quad Core CPU 1200 MHz
Performance	15 000 DMIPS
RAM	1 GB
Flash memory	8 GB eMMC
Software
Operating system	Linux 4.4.35
Middleware supported	Ministra TV platform version 5.4.0 or higher
Interfaces
	HDMI 2.0, Ethernet 100 Mbps, USB 2.0х1, USB 3.0×1, Bluetooth 3.0, 4.1, MicroSD, Built-in Wi-Fi ac 2×2
Sources of media content
	PC and NAS in the local network, Stream media protocols (RTSP, RTP, UDP, IGMP, HTTP), USB-devices
Audio & Video
Audio сodecs	MPEG L1/L2/L3, AAC-LC, HE-AAC V1/V2, APE, FLAC, Dolby Digital Plus
Audio formats	MP3, MPA, M4A, OGG, WAV, AAC
Video modes	PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p
Video сodecs	H.265 (HEVC), H.264 (AVC), MPEG-1/2, MPEG-4, XviD, 3D video support
Video containers	TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP
Image formats	JPEG, PNG, BMP, RAW
Subtitles	DVB, PGS, SRT, SSA/ASS, SUB, Teletext subs, WebVtt, Closed caption
Playlist formats	M3U, M3U8, PLS, CUE

For User Manual click on the following link:

https://drive.google.com/open?id=1YbXh-tAdDqJpFx7LdMTQk23WsBfb_dWW
