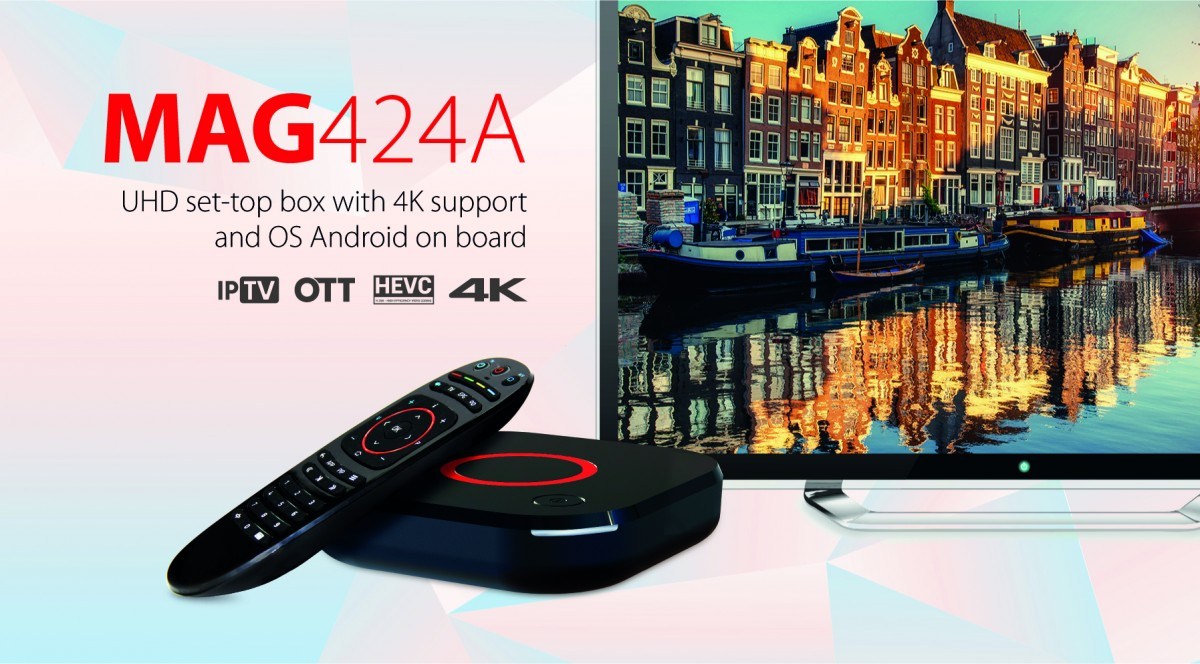

INFOMIR MAG424AW3

0 Customer Review

Categories: IPTV Set Top box,Mag Box

$174.00

~~174.00~~

Availability:

In Stock

Infomir MAG424AW3 is the Android version of the new MAG424W3. MAG424AW3 supports full 4k resolution and sports a faster-upgraded processor. It comes with dual-band wifi (2.4/5g), Bluetooth 4.1, HEVC playback, and USB 3.1 port. Runs Android 7.0

MAG424Aw3 plays the HEVC-compressed files. It means the network load will be lower, even when delivering 4K content. The device runs on Android OS and fully meets the most stringent requirements of the IPTV/OTT market Equipped with 2 USB, Bluetooth 4.1 and built-in Wi-Fi adapter.

INFOMIR MAG424AW3 Information

MAG424Aw3 is a cost-effective UHD IPTV/OTT solution intended for medium to large-sized operators and telecommunication service providers. The set-top box performed in small form-factor. It has 1 GB operative and 8 GB flash memory, which is good enough to playback and stores the high-quality video.

Useful Features:

Easy to Connect USB 3.0 and Bluetooth 4.1 support allows connecting any external drive for extra storage space or a keyboard and mouse for comfortably using the set-top box. High-performance Modern high-performance processor on the HiSilicon chipset Hi3798MV200 and 1 GB RAM is good enough to playback 4K video. Intuitive Design The interface strictly observes Google’s UI design guidelines, so it looks familiar to both the operator and the viewer. Ergonomic Design The set-top box and remote control are presented in the new Micro Fusion design. They will look good in any interior. 4K & HEVC Support With HEVC, 4K video can be efficiently transmitted throw modern fiber-optics networks. MAG424 is a great example of high-quality HEVC support by both the hardware and software of the device.

Specifications

Dimensions Width/Depth/Height (mm) 115x115x28 Weight, g 180 Hardware Chipset Hi3798MV200 Processor ARM Cortex A53 Quad Core CPU 1200 MHz Perfomance 15000 DMIPS RAM 1 GB Flash memory 8Gb eMMC Software Operating system Android 7.0 Middleware supported Ministra multiscreen TV platform Interfaces RCA 3.5 mm, HDMI 2.0, S/PDIF, Ethernet 100 Mbps, USB 2.0х1, USB 3.0×1, Bluetooth 3.0, 4.1 Sources of Media Content PC and NAS in local network, Stream media protocols (RTSP, RTP, UDP, IGMP, HTTP), USB-devices Audio & Video Audio сodecs MPEG-1 I/II, MPEG-2 II, III (mp3), Dolby Digital Plus AAC-LC, HE-AAC v1, HE-AAC v2 Audio formats MP3, MPA, M4A, OGG, WAV, AAC Video modes PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p Video сodecs H.265 (HEVC), H.264 (AVC, MVC), MPEG-1/2, MPEG-4 Video containers TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP Image formats JPEG, PNG, BMP, GIF, RAW Subtitles DVB, PGS, Hardsub, Inserted, SRT, SSA/ASS, SUB, Teletext subs, WebVtt, Closed Caption Playlist formats M3U, M3U8, PLS, CUE Standard Set MAG424Aw3 Set-Top Box, User Manual, HDMI cable, Power adapter 12V 1A, Remote control, 2 AAA batteries, Packaging

For User Manual click on the following link:

https://drive.google.com/open?id=1YbXh-tAdDqJpFx7LdMTQk23WsBfb_dWW

Category: Mag Box Tag: INFOMIR MAG424AW3

Infomir MAG424AW3 is the Android version of the new MAG424W3. MAG424AW3 supports full 4k resolution and sports a faster-upgraded processor. It comes with dual-band wifi (2.4/5g), Bluetooth 4.1, HEVC playback, and USB 3.1 port. Runs Android 7.0

MAG424Aw3 plays the HEVC-compressed files. It means the network load will be lower, even when delivering 4K content. The device runs on Android OS and fully meets the most stringent requirements of the IPTV/OTT market Equipped with 2 USB, Bluetooth 4.1 and built-in Wi-Fi adapter.
